弧齒型接鏈環

弧齒型接鏈環用來連接垂直面或水平面的礦用圓環鏈,而且還能用在刮板輸送機和刨煤機上。

特殊材料的選擇和較小的公差保證了弧齒型接鏈環不但便于安裝,而且性能優于DIN標準的鏈環。

采用帕森斯技術,機械性能符合DIN22258第2部分要求。

弧齒型接鏈環垂直安裝使用時,一定要注意裝配方向,保證上方箭頭與傳動方向一致

Bi-Lock Connectors (for vertical and horizontal use, horizontal link connector is preference)

Bi-LOCK connectors have been specifically designed to join together round link mining chains in either the horizontal or vertical plane ,allowing the connectors to be used in both AFC and plough haulage system applications .

Special material selection combined with close tolerance machining ensures the connector is easily assembled and has a strength greater than the minimum requirements of chain to DIN22252/2 of a comparable size.

Adopting Parsons Chain Technology, the mechanical properties meet the requirements of DIN22258 Part 2.

Please be aware of the fitting direction when assembling for vertical use,keep the top arrow direction same with the transmission direction

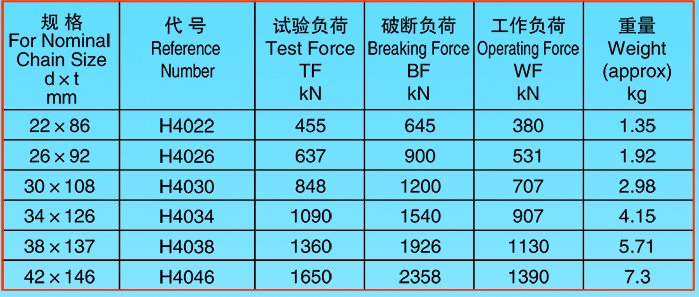

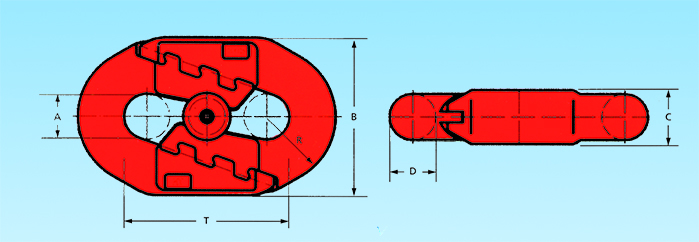

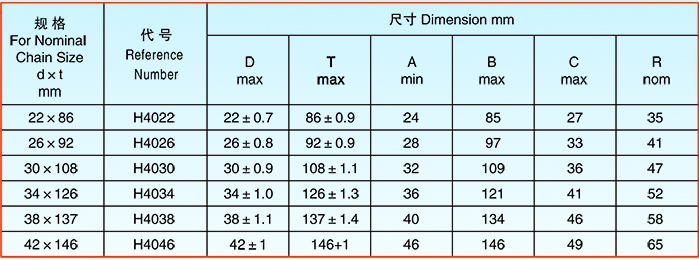

尺寸與質量

疲勞試驗最小70000次;平均應力150N/mm2;振幅±100N/mm2;KV沖擊試驗最小55J(典型的70J)
參考DIN22258:2003第1部分驗證方法和程序

Fatigue Test -70,000 cycles min. Mean stress 150N/mm2. Amplitude±100N/mm2. Impact KV Test-55J.min.(70J Typical)
Refer to DIN22258:2003 Part 1 for verification methods and procedures.

安裝及維護
弧齒型接鏈環安裝說明書提供了安裝和維護的正確方法

*保證安裝表面和瑣緊面清潔                                        *定期檢查磨損和損壞
*將兩個半環和定位銷用瑣緊螺栓組裝起來        *每3個月或是完成100萬噸過煤量進行檢查(如果用于
*不要在兩個接鏈環中插入其他部件            轉載機需每月檢查一次)

Assembly and Maintenance

An instruction leaflet is supplied with each BI-LOCK connector which gives guidance on correct assembly and maintenance.

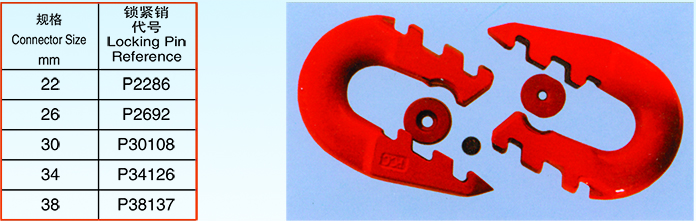

● Ensure the mating surfaces and locking barrel are clean                  ● regularly check for wear or damage

   and free from dust.                                                                       ● Fully examine every 3 months or 1M tonnes

● Once half links and locking barrel are assembled insert locking pin    conveyed whichever is the sooner

● Do not interchange components between connectors.                       (For BSL use, examine monthly)
